Stanley 28

A splended small day boat with overnight accomodations

Stanley 28

A splended small day boat with overnight accomodations

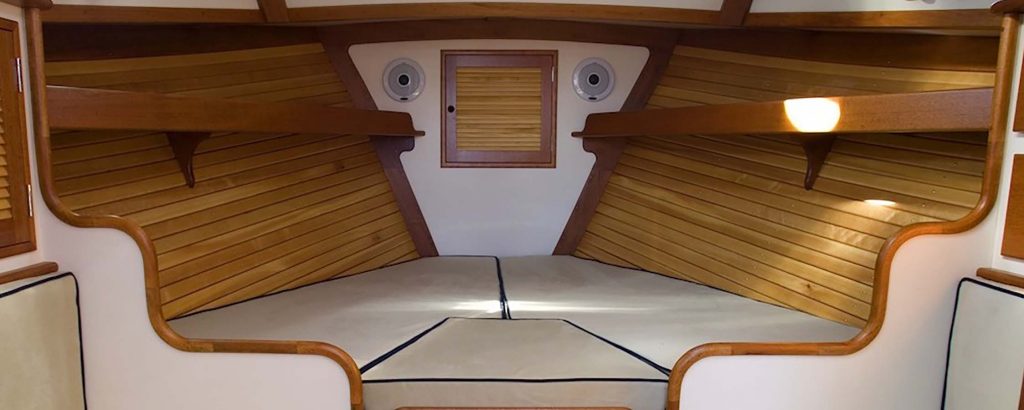

The Stanley 28 is solidly constructed throughout, from the proven unidirectional fiberglass hull to her mahogany and teak joinery work. Powered by either a gas or diesel engine, the 28 has a very quiet soundproofed, wet-muffler stern exhaust system. Take the ST 28 out for a spin and be back in plenty of time for the evening news – or make an overnight of it, thanks to the small galley, enclosed head, and V-berths.

Specifications and equipment

  • Fuel: Two 90-gallon tanks
  • Water: Two 35-gallon tanks
  • Unidirectional fiberglass hull
  • Solid integral keel & skeg
  • Molded fiberglass rudder, stainless steel post (1 ½”), bearings
  • Stainless steel propeller shaft (1 1/2”), cutlass bearing outside, stuffing box inside
  • Engine Installed
  • Manual hydraulic Wagner (N-40-190) steering system
  • Wet-muffler exhaust system out of stern
  • Bass AC / DC circuit breaker panel, lighting and mechanical circuits and fixtures
  • Two 200-amp heavy-duty batteries
  • Fiberglass non-skid deck
  • Fiberglass cockpit coaming
  • Teak guard & toe rails on deck
  • Bronze, stainless, or chrome cleats and bow chocks
  • Varnished Honduras mahogany pilothouse trim and cockpit steps
  • Varnished Honduras mahogany windshield frame, ledger boards, posts & trim

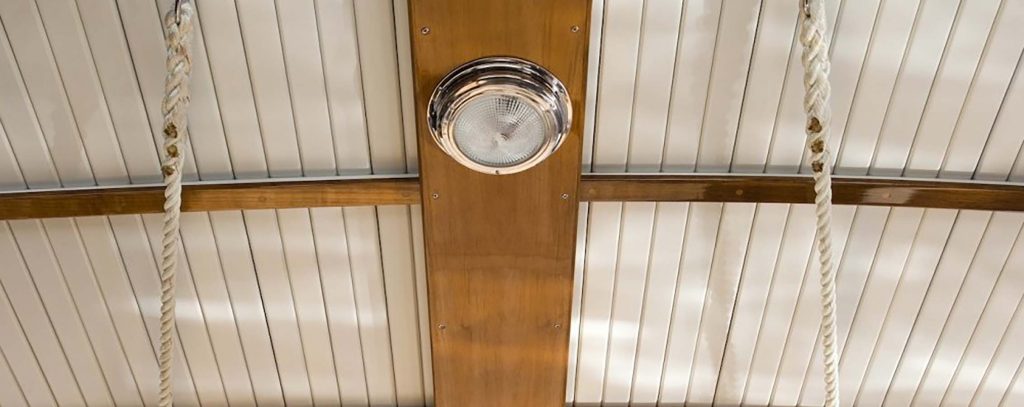

  • Varnished Sitka spruce cabin ceiling
  • Teak and holly sole
  • Bulkheads, cabin sides and overhead painted in Awlgrip cabin enamel
  • Bomar Hatch
  • Galley with two burner stainless-steel propane stove, stainless-steel sink & faucets, top-access icebox, Formica counter top
  • Enclosed head to stbd with marine toilet, small stainless sink, shower and mirror
  • Waste system: 25-gallon tank, macerator pump, overboard discharge, deck pump out

LOA 28’
LWL 26’
Beam 9’ 6”
Draft 2’ 11”
Cruising Speed 17.5 knots
Top Speed 20-21 knots
